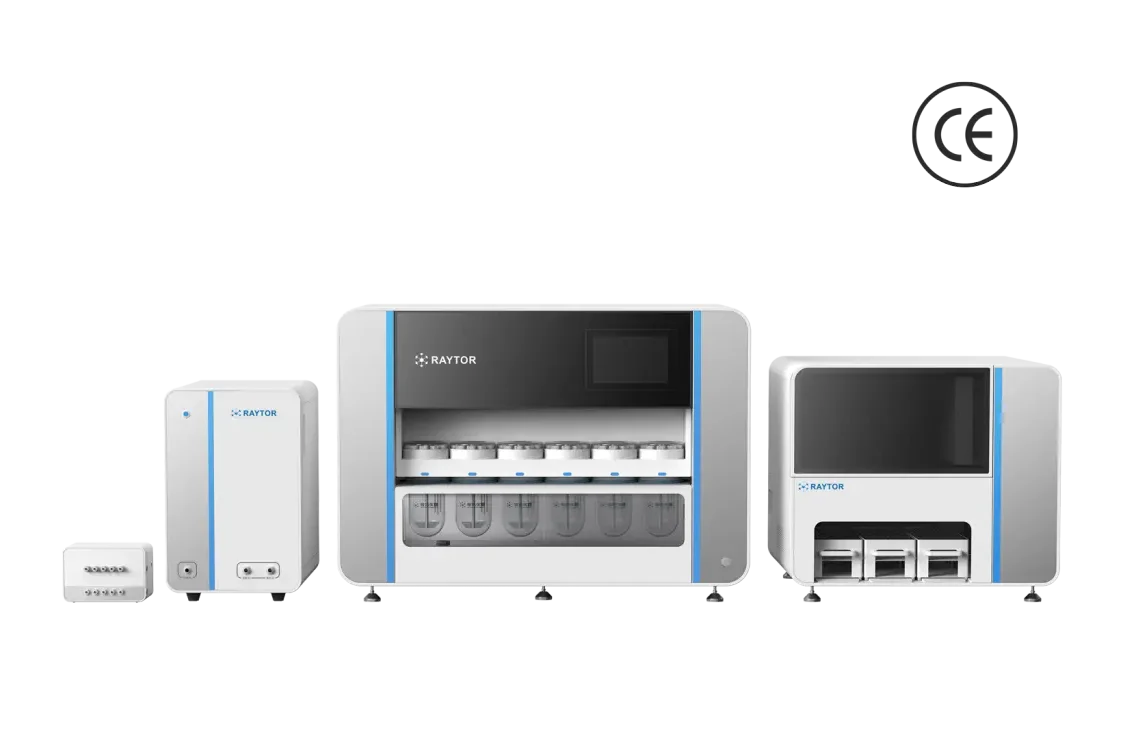

RT9 Series Multi Batch Automatic Dissolution System

A high-efficiency dissolution testing solution named RT900 Multi-Batch Automatic Dissolution System performs 10 consecutive batch tests while requiring less human interaction. This system provides exact media distribution while delivering complete cleaning of vessels and sophisticated automatic Processes that ensure the reliability of dissolution experiments. The system enables USP 1/2 method processing to meet all regulatory specifications. The instrument contains a high-end autosampler that allows automated online filtering while providing unlimited data storage capabilities. Its precise temperature and speed control guarantee accurate and repeatable test results.

Learn More

Get Free Quote

Download Sheet

Efficient 10-batch dissolution test
High Precision Media Dispensing and Removal

Thorough Cleaning for Dissolution Cup
Advanced Fully Automated Experience

Description
The RT900 machine performs complete vessel cleaning by applying optimized spray techniques which lowers the chances of contamination. The system operates without supervision to handle multiple batch runs through its sophisticated automated processes.

This equipment provides compliant FDA 21 CFR Part 11 operations through its real-time monitoring and strong data storage capabilities. The implementation of this system leads to improved effectiveness together with higher accuracy levels in pharmaceutical quality control operations.

Features

10 batches efficient experiments

Automatically complete all 10 batches of dissolution testing tasks unattended.

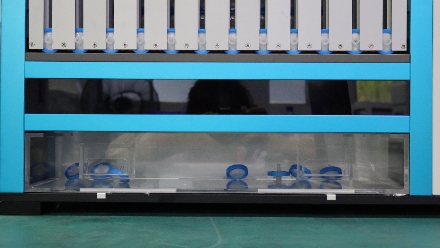

Automatic online filtering

High-end type autosampler that supports storage and online automatic replacement of secondary filters.

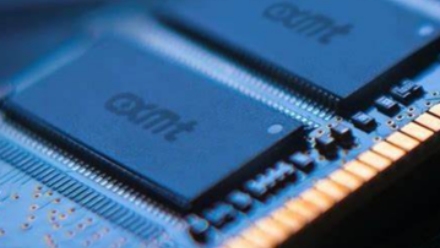

Unlimited data storage

It can store at least 15 years of experimental methods and records without the risk of data overwriting.

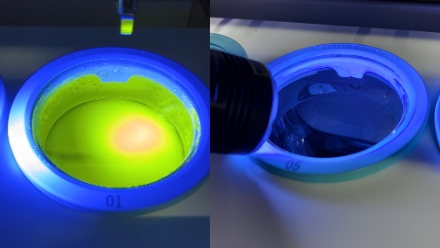

Thorough cleaning for dissolving vessels

Spraying without dead angle, with the appropriate cleaning fluid and cleaning times set to effectively reduce the risk of sample residue between multiple batches of experiments.

Application

Basket and paddle methods are the most commonly used legal dissolution methods in national pharmacopoeias and were the first dissolution methods introduced into pharmacopoeias. They are mainly used for quality control (QC) of pharmaceutical products.

General tablets
Immediate-release tablets
Enteric tablets
Extended-release tablets

Specifications

Product Brochure

Dissolution System

Dissolution Vessel Number: 6	Number of automatic experimental batches: 10
Setting Range: 20-250 rpm (RPM)	RPM Resolution: 0.1 RPM
Temp. Accuracy: ≤ ± 0.5℃	Temp. Resolution: 0.1 ℃
Level: ＜ 0.5°	Vessel Verticality: 90°± 0.5°
Shaft Verticality: 90°± 0.5°	Centering Deviation: ＜ ± 2.0 mm
Depth Positioning Deviation: ＜ ±1.0 mm	Shaft Wobble: ＜ ± 1.0 mm
Basket Wobble: ＜ ± 1.0 mm

Medium Preparation Workstation

Temp. Control Rang: Room Temp. ~ 45℃	Degassing Effect: Oxygen ≤ 3ppm
Degassing Volume: ≥50L

Automatic Sampling Workstation

Maximum Settable Sample Number: 20	Sampling Range: 5 ~ 20 ml
Sampling Precision: ≤ ±1%

Operating System

Meeting FDA21 CFR Part 11
