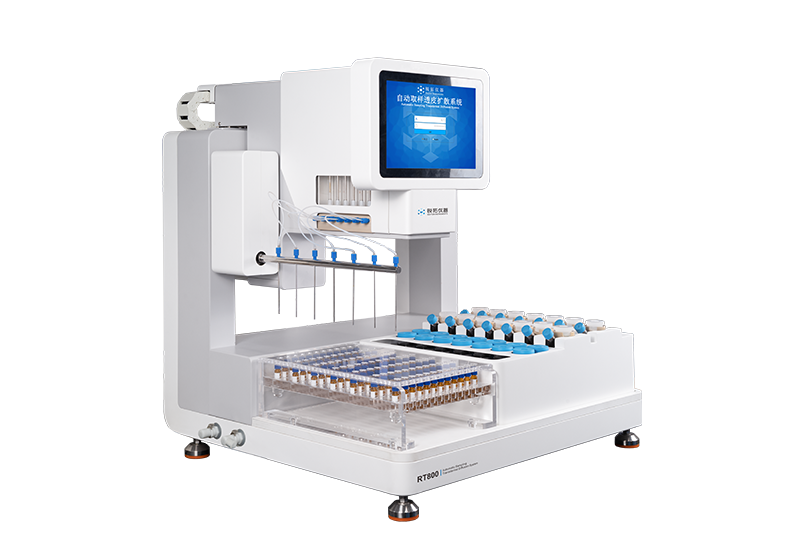

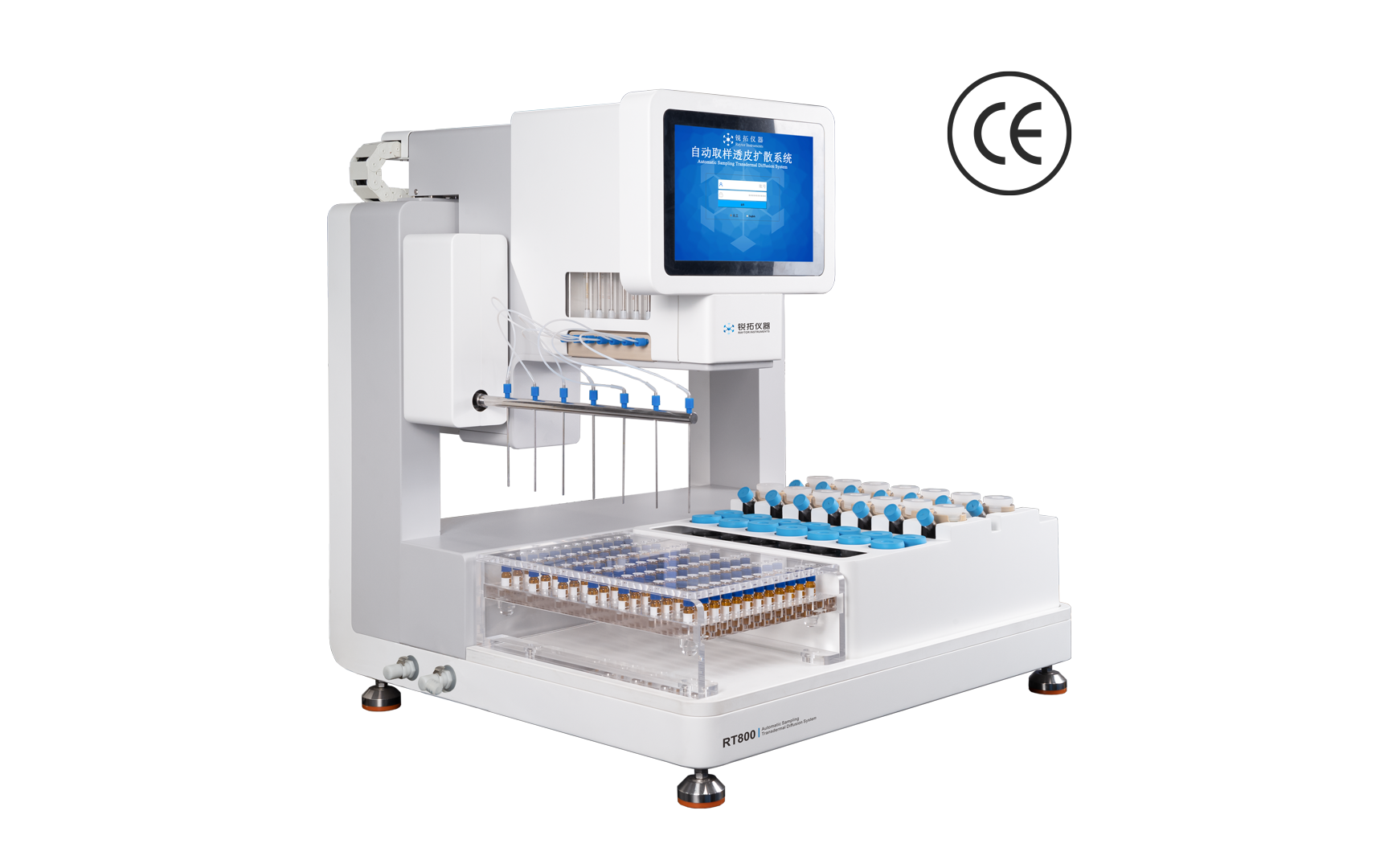

RT800 Franz Diffusion Cell System
RT800 Franz Diffusion Cell System is consisting of Franz diffusion cells and an automatic sampling device. It complies with the European Pharmacopoeia (EP9.0): General rules<2.9.4 Dissolution test for transdermal patches> and the United States Pharmacopoeia: General rules<1724> Semisolid Drug Products – Performance Tests requirements for in vitro release tests (IVRT) and in vitro permeation tests (IVPT). Through automated operations, it can achieve complex cleaning, sampling, and refilling functions to improve the accuracy of test results.
Learn More
Get Free Quote
Download Sheet
- Complies with regulation USP<1724>
- 7 channels synchronized automatic sampling
- Meet audit trail requirements
- Shorter pipeline design effectively reduces sample residue
-
Description
-

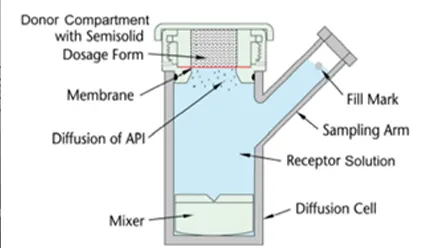

The diffusion cell standard meets the description of the 5thtype diffusion cell in USP<1724>. The open operating space is convenient for loading and sampling. The mark of the injection position can indicate whether the diffusion cell is filled normally. The diffusion cell is easy to be removed from or put on the equipment, which is convenient for checking and discharging bubbles.
The equipment has a complete audit tracking function and SQL database. The operating system can store no less than 200 test methods and no less than 100 accounts
Features
Compliant diffusion cell style
Compliant with the diffusion cell style recommended by USP<1724>

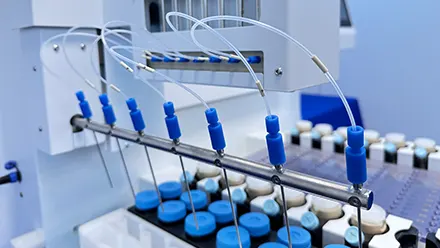

Shorter pipeline design
The sampling pipeline is shorter, which can reduce the risk of pipeline residue.

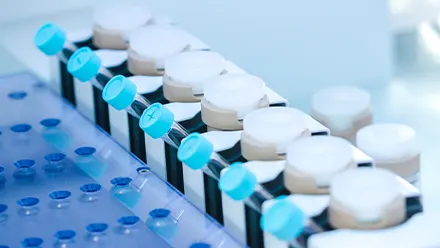

The number of diffusion cell: 6+1
A group can conduct up to 7 diffusion cell tests, so a blank group can be designed to exclude other interference.

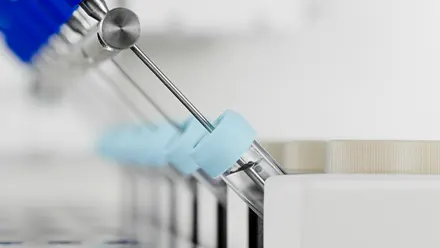

Simultaneous sampling design.
When sampling, the diffusion pools in the same group will be sampled at the same time to reduce the impact of sampling time on the test results

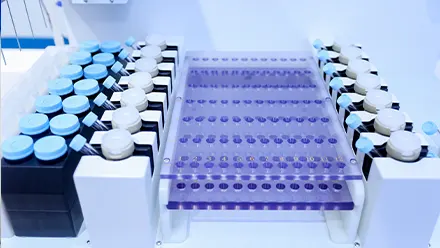

Two groups independent design
The two groups of diffusion cells can be used for testing at the same time without interfering with each other.
Filling point design
The filling point is marked on the diffusion cell. After removing the bubbles, the medium is injected to the filling point to ensure that no bubbles are generated in the future.
Application
Meet the test requirements of USP<1724> for in vitro release and in vitro permeation of semi-solid preparations
-
creams
-
ointments
-
patches
-
gels
Specifications
Product Brochure
Automatic Sampling Transdermal Diffusion System
|
Diffusion cell position: 7×2 |
Sampling channels: 7 |
|
Diffusion cell volume: 10ml, 15ml, 20ml, 25ml, 30ml, 40ml |
Sampling times: ≤24 |
|
Sampling range: 0.2~1.5ml |
Temperature error: ≤±0.5℃ |
|
Temperature range: room temperature~45℃ |
Speed range: 200~900rpm |
|
Speed error: <±10% |
Heating method: dry heating |
|
Manual bubble exhaust |
Maximum sampling time: 9999mins |
