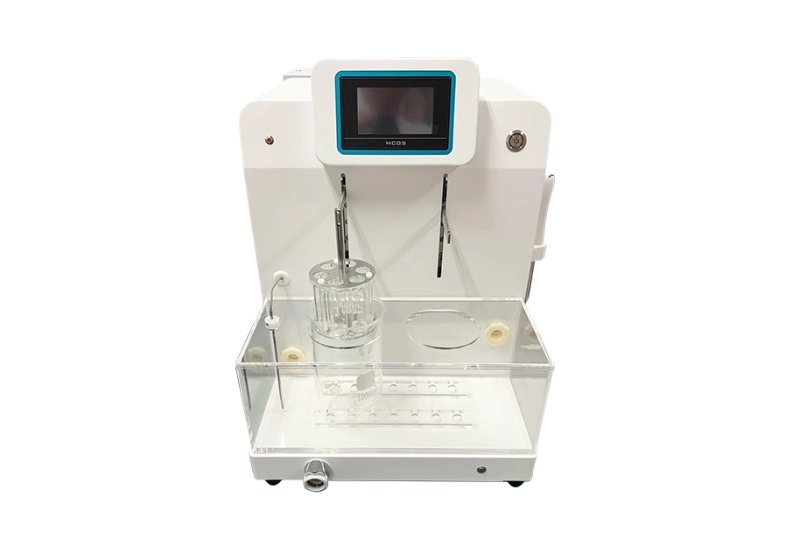

RT150 Tablet Disintegration Tester
The RT150 hardware operates according to the USP <701> specifications for tablet disintegration examinations. The device enables proper disintegration testing for tablets, and capsules along with solid pharmaceutical forms, helping manufacturers with their quality control evaluations. The device provides parallel testing functionality through its two independently functioning hanging baskets. Sample evaluation becomes more precise because the built-in lighting feature provides clear views of the disintegration process. Open construction of the hanging baskets enables compatibility with various regulatory requirements to improve flexibility.
Learn More
Get Free Quote
Download Sheet
- The hanging basket can be replaced flexibly according to regulations
- Equipped with a lighting system
- Two groups independ design
- Stable performance
-
Description
-
The device shows both constant operation capabilities accurate temperature management and adjustable lifting speed functions. The testing method with independent baskets ensures that each test unit operates without being affected by neighboring devices. Routine pharmaceutical testing benefits from the device because its interface supports easy operation.
Features

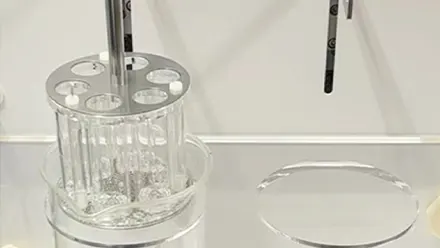

Replaceable hanging basket design
The hanging basket can be replaced according to the different requirements of ChP method 1, EP A method, EP B method.

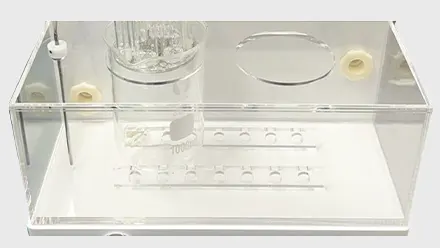

Equipped with a lighting system
The disintegration process of the sample in the water tank can be observed during the test, making it easier to judge the sample condition

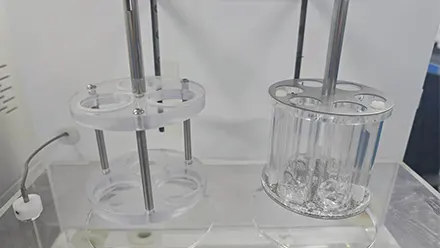

Two independent groups
The two hanging baskets can be tested separately without affecting each other
Application
According to USP, BP, JP regulations, it can automatically complete the detection of the disintegration time limit of the sample
-
Tablets
-
Capsules
-
Pills
-
Orally disintegrating tablets
Specifications
Product Brochure
Disintegration tester
|
Temperature range: room temperature ~ 45℃ |
Temperature resolution: 0.1℃ |
|
Number of hanging baskets: 2 |
Lifting frequency: 30~32 times/minute |
|
Screen aperture: 2mm (other apertures are optional) |
Lifting distance: 53~57mm and 9~11mm |
|
Screen distance from cup bottom: 25mm±2mm |
