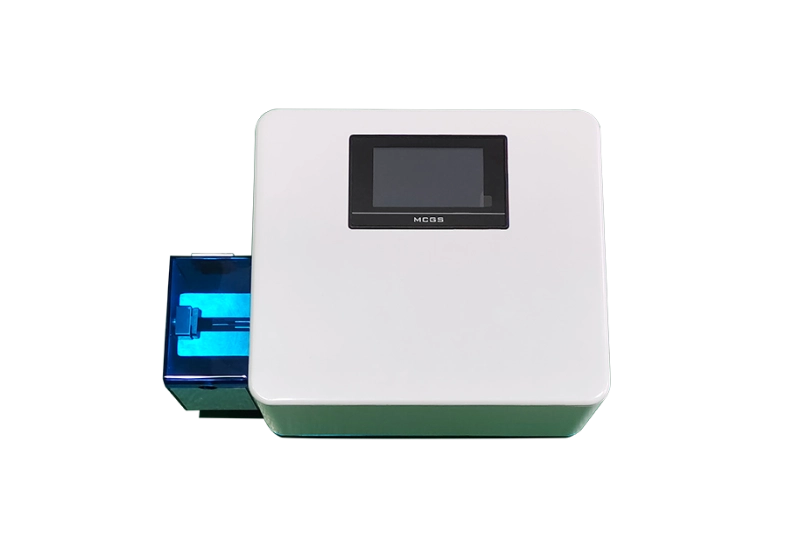

RT100 Tablet Breaking Force Analyzer

The RT100 Tablet Breaking Force Analyzer provides pharmaceutical laboratories with an effective instrumentation to measure tablet integrity alongside USP <1217> and EP 2.9.8 standards compliance. The equipment satisfies USP <1217> and EP 2.9.8 guidelines to fulfill regulatory standards. A small design enables simple setup and operation of this device. This testing device provides support for different tablet formats that extend to round shapes together with oval and convex structures as well as distinctive designs. The RT100 uses its precise pressure detection element to produce dependable outcomes for pharmaceutical quality testing.

Get Free Quote

Download Sheet

Independent sample collection box
Comes with a pressure detection module

Simple operating system
Compact structure allows for quick deployment

Description
The pressure module offers precise measurements of hard and size specifications. Users can configure setup easily through the interface and manage test results with the same interface.

Features

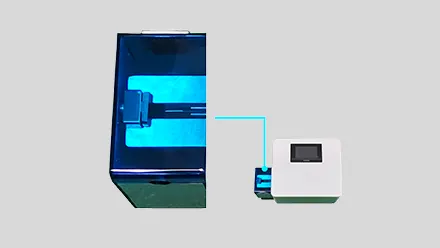

Sample collection box

The samples after the test will be placed in the collection box, which is convenient for cleaning the samples after the test.

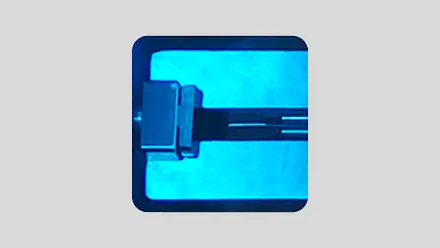

Pressure detection module

The size of the tablet is detected by automatically moving the clamp, and the hardness of the tablet is also detected.

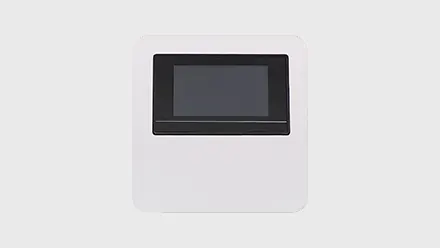

Intuitive operating system

The intuitive user interface allows for quick and easy testing, and test results can be saved in PDF or exported directly

Application

According to the requirements of the United States Pharmacopoeia <1217> and the European Pharmacopoeia 2.9.8, the ability to automatically detect the integrity of drug preparations provides reference information for the quality control of drug preparations.

Tablet breaking force
Tablet thickness, diameter, width
Capsule thickness, diameter, width
Granule thickness, diameter, width, breaking force

Specifications

Product Brochure

Tablet Breaking Force Analyzer

Tablet hardness test range: 4-500N, optional 1000N	Analysis principle: constant speed or force balance
Force balance range: 10-100N/sec	Constant speed range: 5-200mm/min
Detection accuracy: ±1N	Diameter measurement range: 0.00-30.00mm, can be changed to 60mm
Diameter measurement accuracy: ±0.01mm	Thickness test range: 0.50-10.00cm
Thickness measurement accuracy: ±0.01mm
