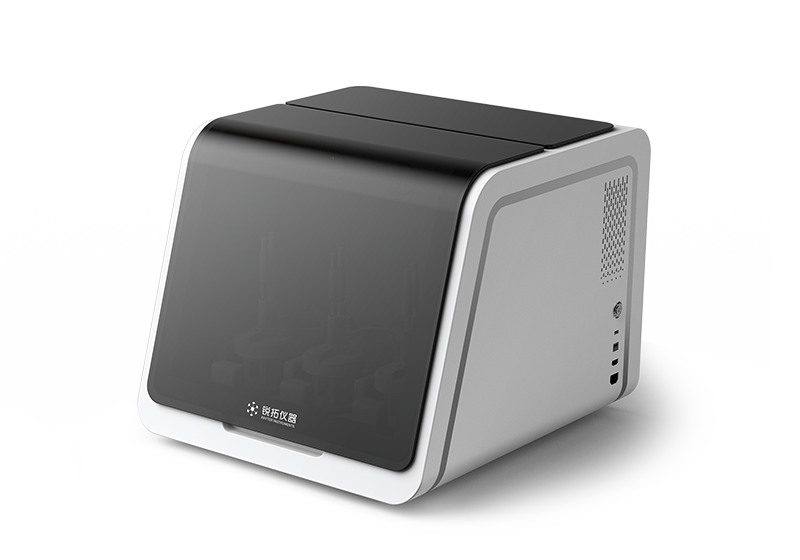

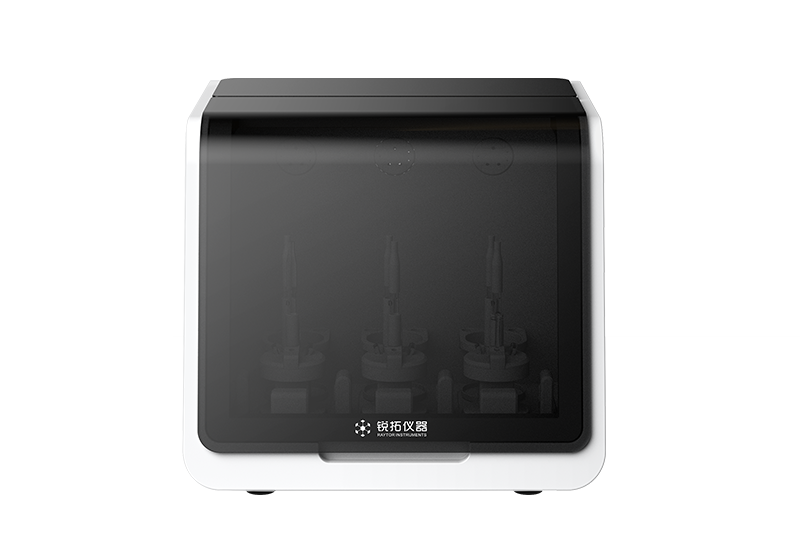

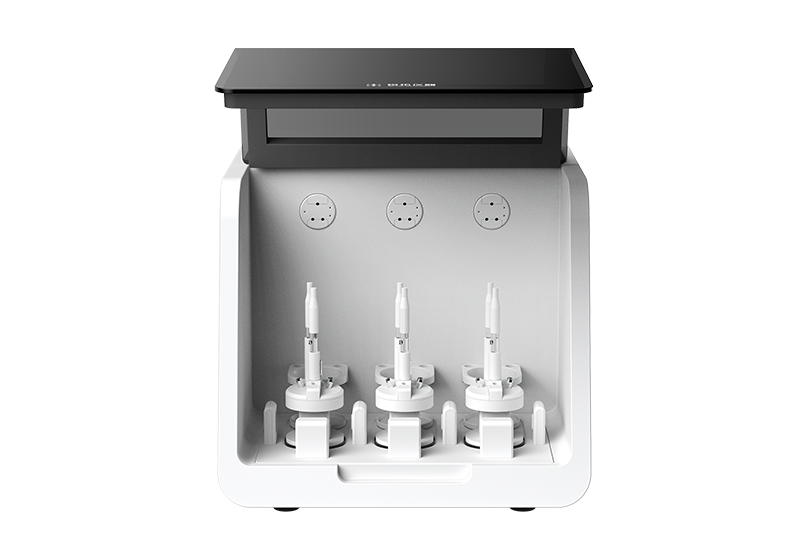

NCE SI Subcutaneous Injection Analysis System
The NCE is Subcutaneous Injection Analysis serves as a testing device that imitates the changes and stress factors that biopharmaceuticals along with peptides and small molecule drugs face following subcutaneous administration. The device assesses drug release patterns in vivo through a method that reproduces drug dissolution together with permeation in extracellular matrices.
Learn More
Get Free Quote
Download Sheet
- Greatly save animal resources
- Speed up prescription development
- Reduce research costs
- Simple and reliable operating software
-
Description
-
Camera System
Real-time drug release behavior can be recorded by the camera for drug performance assessment.
Grating System
A light-intensity recording device powered by an external source measures extracellular drug sediments while the system operates.
Duel Chamber Structure
The device consists of two chambers where the inner section represents subcutaneous tissue conditions while the outer area represents systemic circulation parameters.
Features

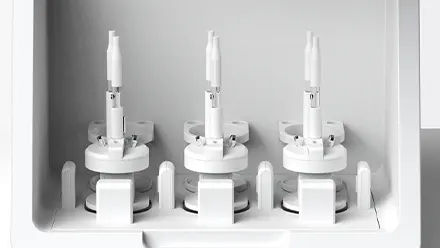

Duel Chamber Structure
The inner chamber simulates the subcutaneous tissue environment, and the outer chamber simulates the systemic circulation environment.

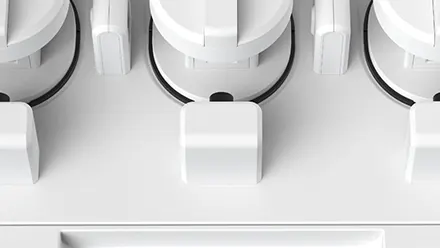

Camera System
Record the release behavior of the drug in real time through the camera to assist in judging the drug performance

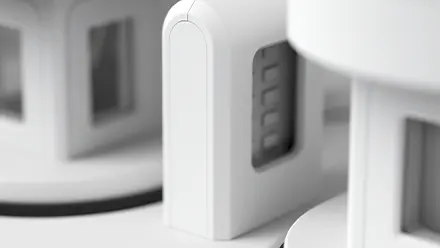

Grating System
Equipped with an external light source, it can record the changes in light intensity during the experiment and judge the sedimentation behavior of the drug in the extracellular matrix.

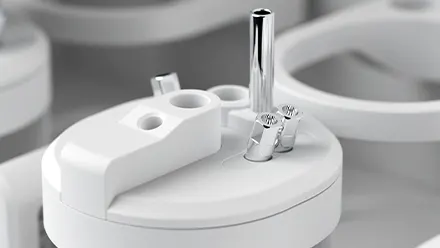

Fiber optic system
The drug concentration changes in the device are monitored in real time through optical fiber, making the test results more accurate.
Application
Product application (experimental dosage forms):
Simulate the dissolution and penetration of drugs under the skin by constructing an in vivo subcutaneous environment.
-
Macromolecule biological preparations
-
Peptide drugs
-
Small molecule subcutaneous injections
Specifications
Product Brochure
Subcutaneous Injection Analyzer
|
Number of channels: 3 |
pH range: 4~10 |
|
Stirring rate: 100~1000rpm |
Stirring accuracy: ±10rpm |
|
Wavelength range: 200~850nm |
Minimum acquisition time: 1s |
|
Wavelength accuracy: 1nm |
Temperature range: room temperature~40℃ |
|
Light source type: deuterium lamp |
Light source life: >1000h |
